Custom Drums Grooved for Wire Rope
Precision-grooved drums for consistent wire rope spooling.

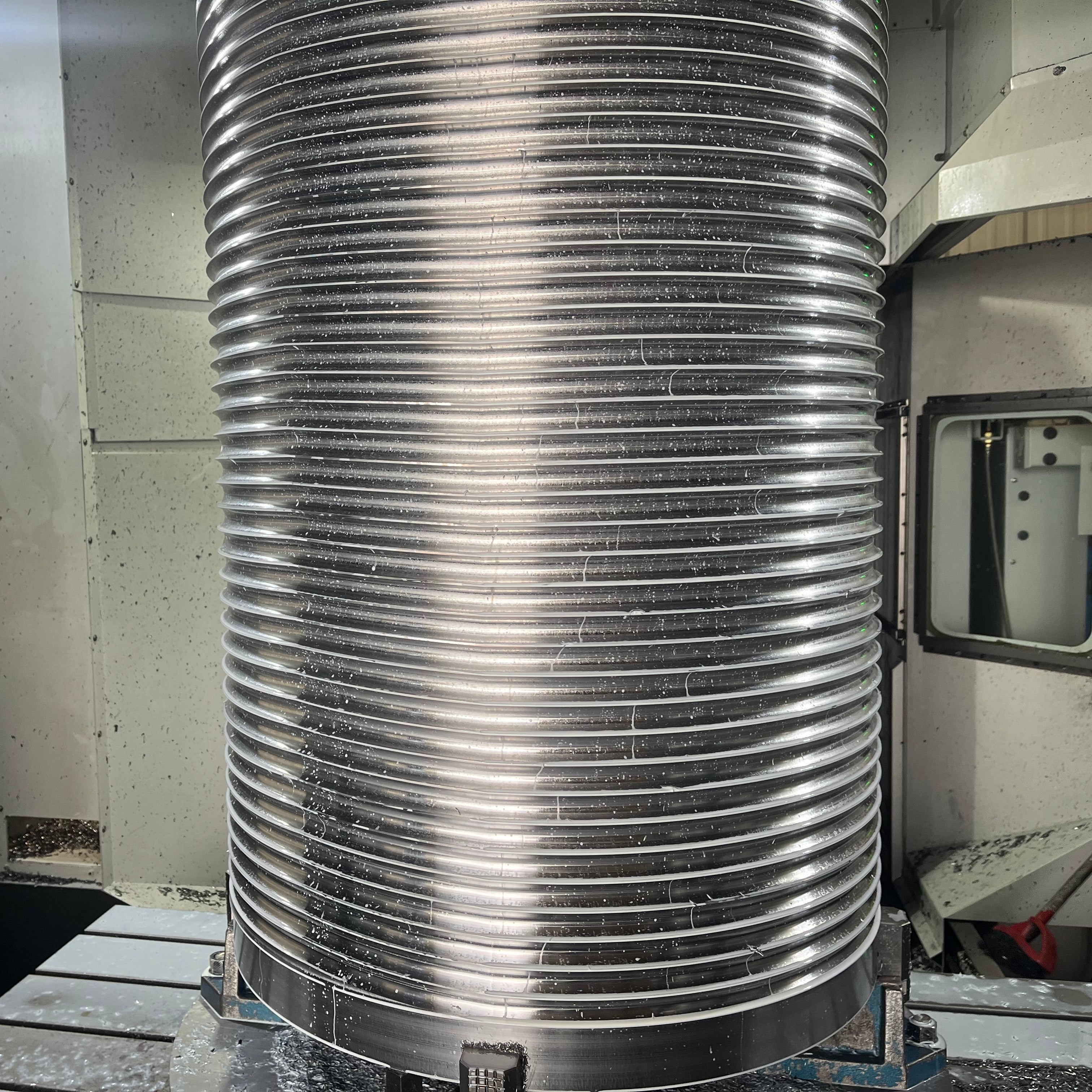

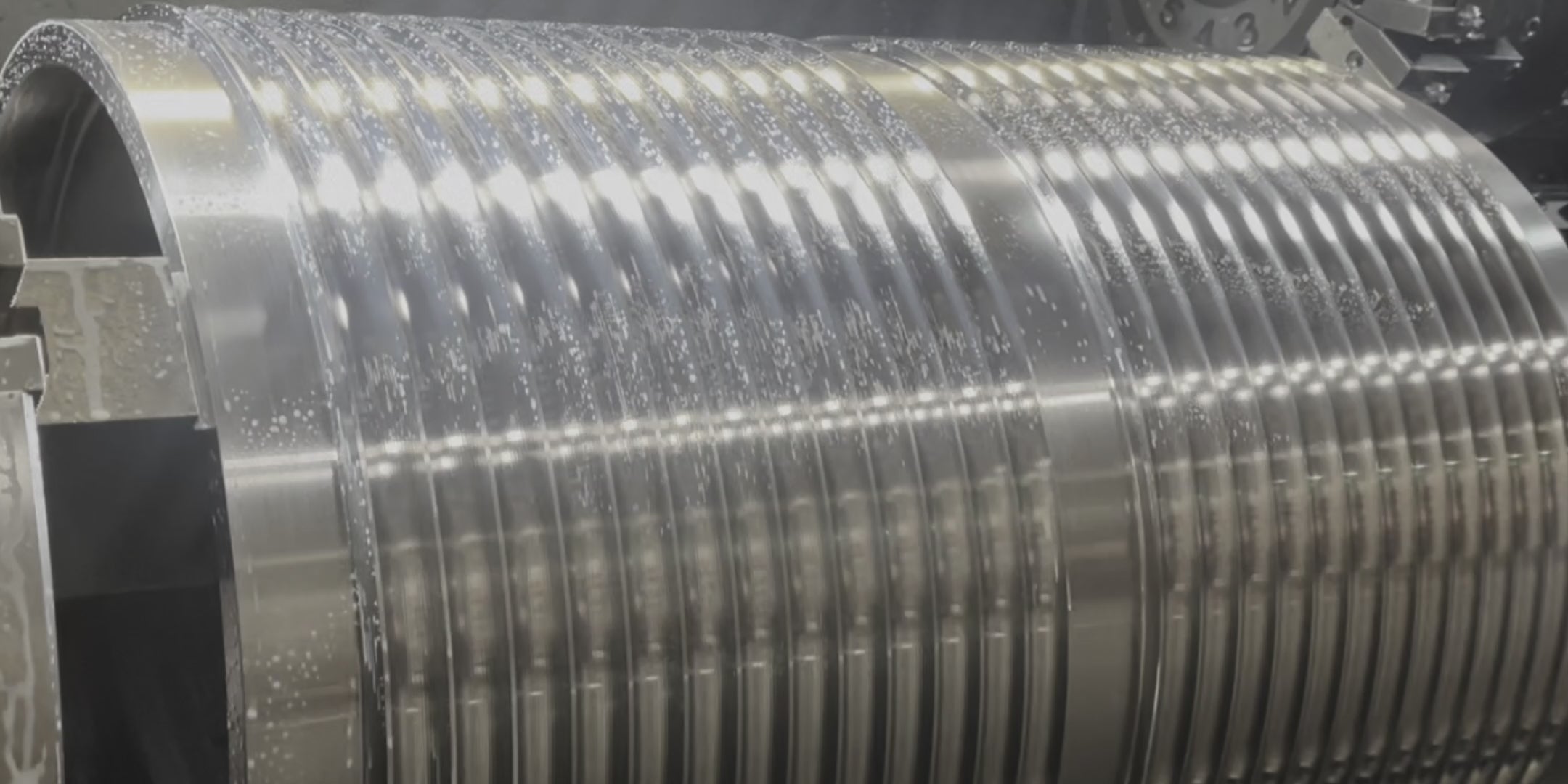

Drums are machined in-house from 3″ to 36″ diameter. CNC horizontal lathes and vertical mills ensure consistent geometry and predictable rope behaviour across all layers. Custom drums are commonly supplied for OEM equipment manufacturers and large industrial installations requiring integration into broader mechanical systems.

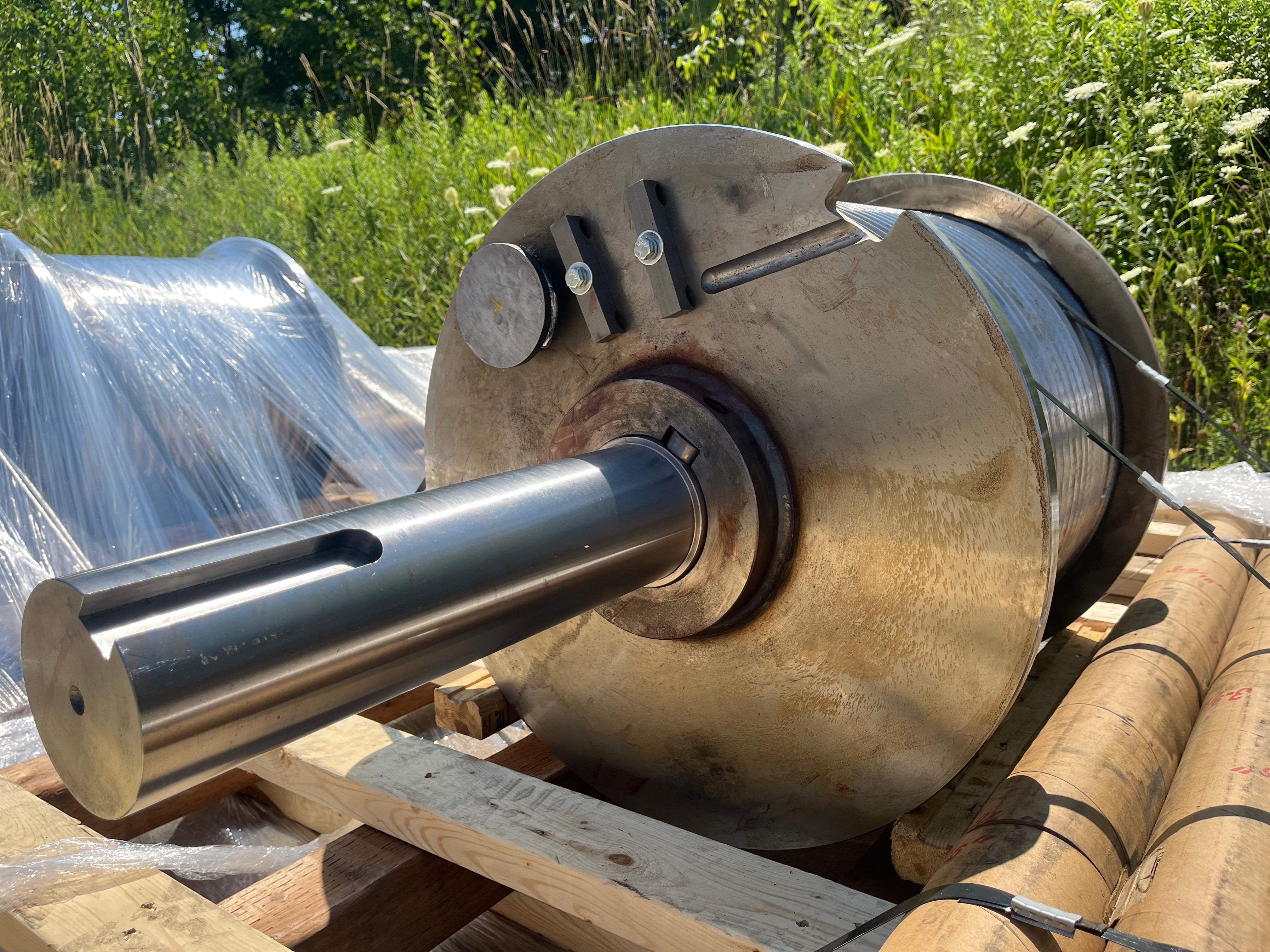

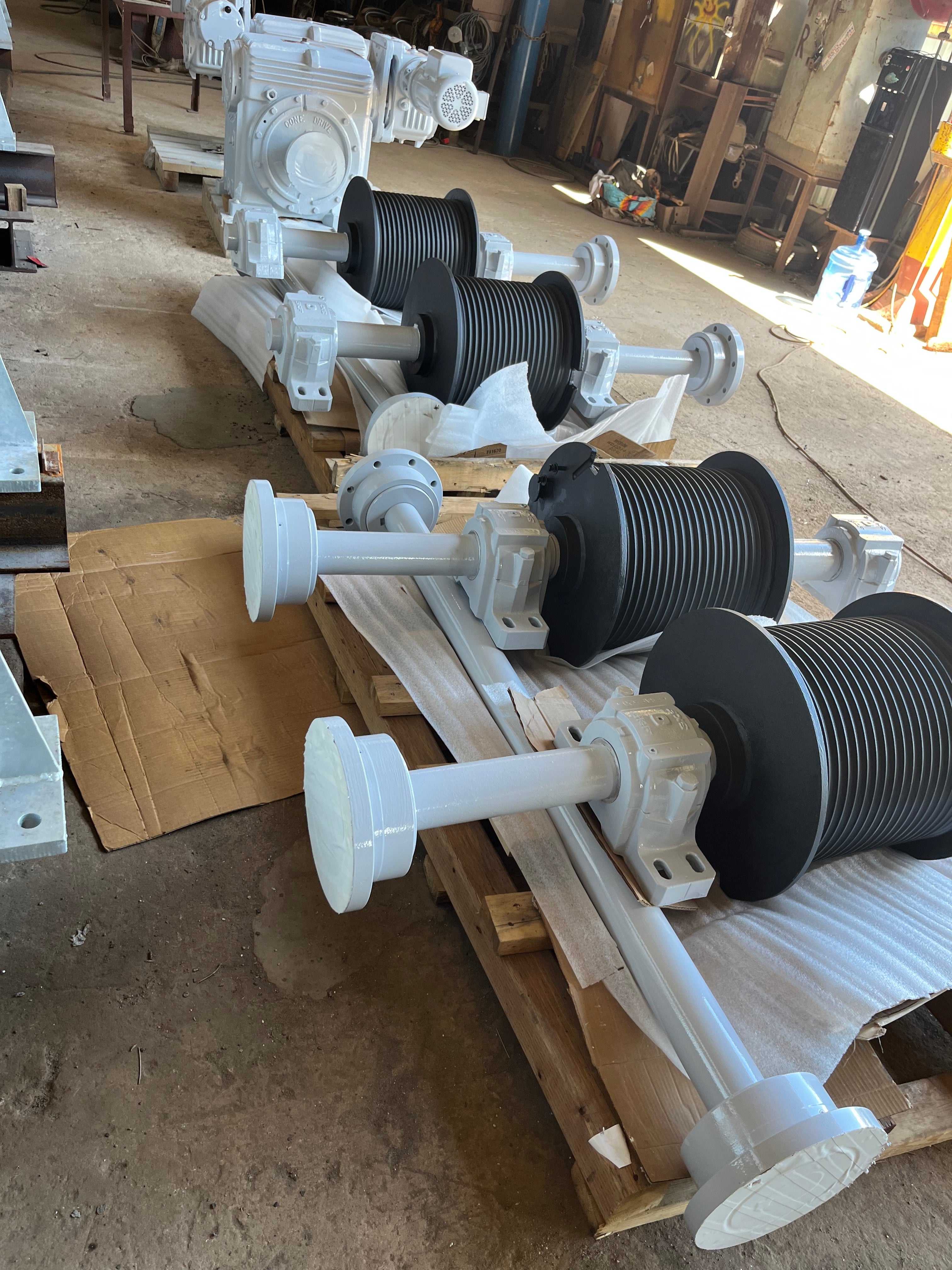

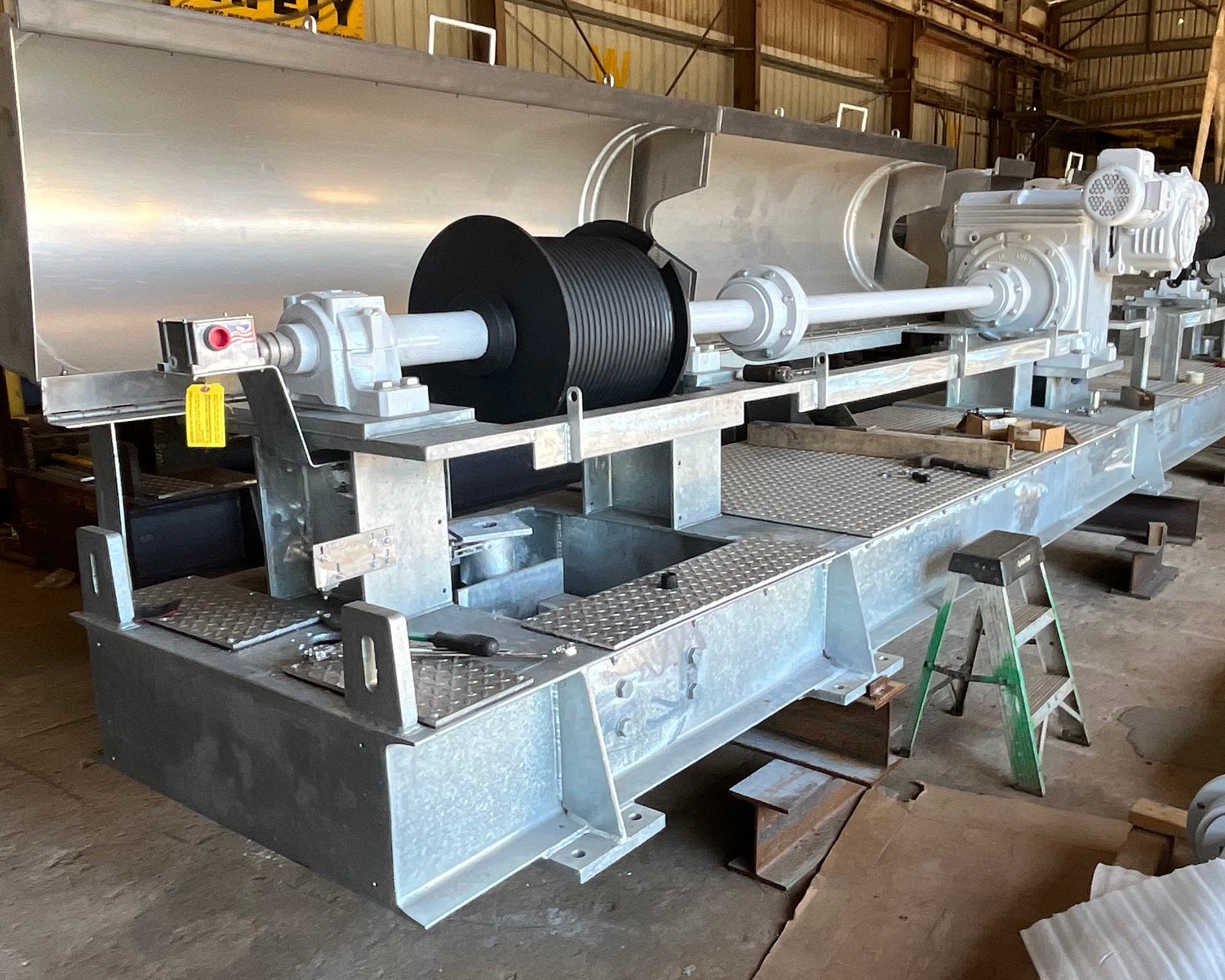

Drums may be specified with broached hubs, coupling-ready hubs, keyed shafts, or stub shafts for direct pillow block mounting, allowing integration into existing drive and support arrangements without additional fabrication.
|
Helical Groove
|
Parallel Groove
|
|
|
Groove Geometry
|
Continuous helical pitch. A straightforward solution, delivering predictable spooling on the first layer |

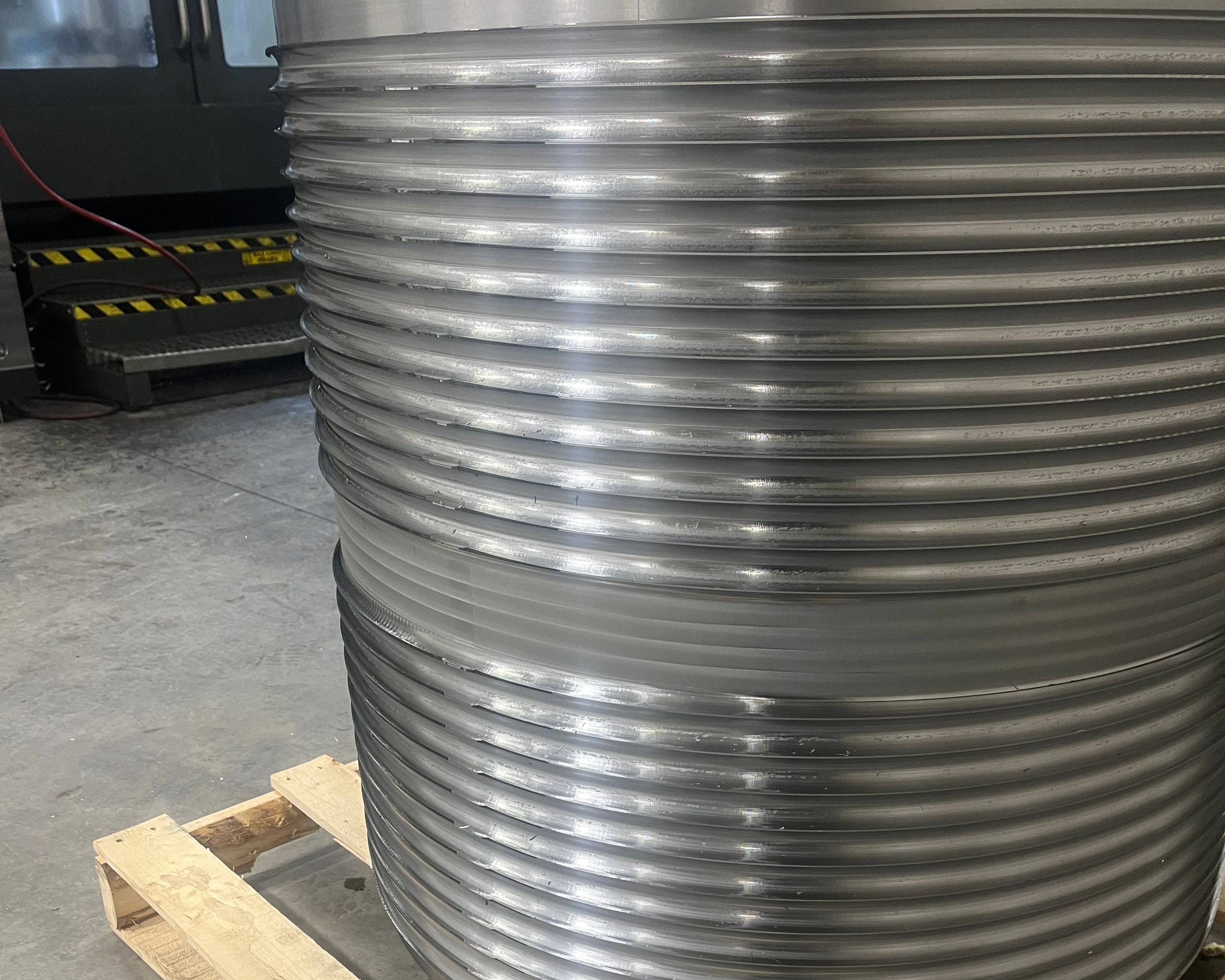

Parallel grooves with crossover zones. Promotes consistent multi-layer spooling by minimizing cross-winding |
|
Spooling Behavior
|
Continuous cross-winding |
Controlled layer transitions |
|
Rope Interaction
|
Higher layer-to-layer contact |
Reduced contact between layers |
|
Fleet Angle
|
Up to 3° (first layer) |
Optimized for 0.25°–1.25° |
