Vertical Lead Blocks

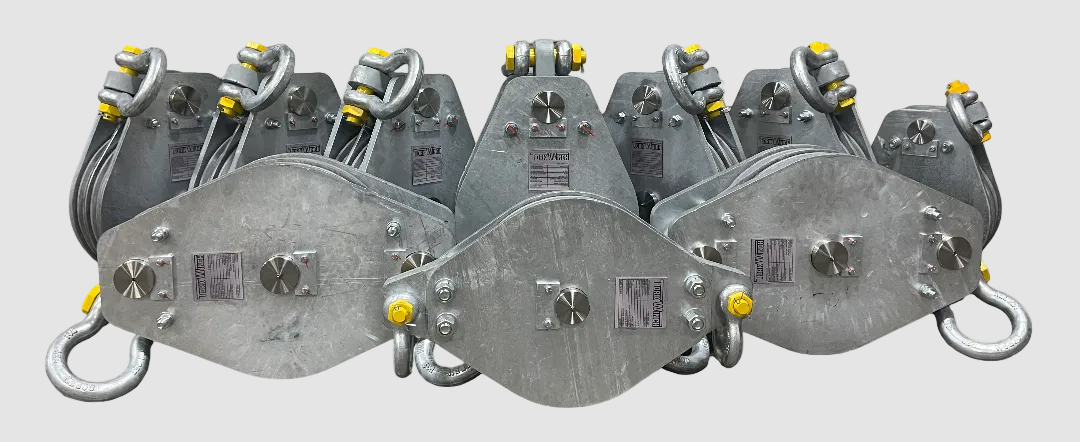

Tork Winch directional blocks are manufactured from fine-grain steel. Sheaves are zinc plated for sacrificial corrosion protection, and block housings are powder coated for enhanced corrosion resistance and surface durability. Sheave pitch diameters maintain a minimum 15:1 D:d ratio relative to wire rope diameter. Blocks are rated to their full Working Load Limit at a 180° rope wrap angle. Vertical units incorporate flanged oil-embedded bronze bushings as standard, with sealed or roller bearings available as alternatives.
| Model | Maximum Working Load (lb) | Sheave Diameter (in) | Rope Size (in) | Approx. Weight (lb) | Overall Height (in) | Overall Width (in) | Overall Length (in) |
| HLB 3000 | 3000 | 4 | 1/4 | 6 | 2 | 4 | 7.5 |
| HLB 6000 | 6000 | 6 | 3/8 | 20 | 2-3/4 | 6 | 10.5 |
| HLB 10000 | 10000 | 8 | 1/2 | 46 | 3-17/32 | 8 | 13.5 |
| Model | Maximum Working Load (kg) | Sheave Diameter (mm) | Rope Size (mm) | Approx. Weight (kg) | Overall Height (mm) | Overall Width (mm) | Overall Length (mm) |
| HLB 3000 | 1360 | 101 | 6 | 2.8 | 51 | 102 | 191 |
| HLB 6000 | 2721 | 152 | 10 | 9.1 | 70 | 153 | 267 |
| HLB 10000 | 4535 | 203 | 13 | 20.9 | 90 | 204 | 343 |
Don’t See the Block You Need?
When standard configurations do not meet your application requirements, our in-house engineering, design, and machining capabilities enable economical custom solutions.
