Custom Sheaves
Tork Winch designs and manufactures custom sheaves to suit specific application requirements. In-house CNC machining from 1–48″ diameter ensures each sheave is engineered to match load, speed, and service conditions.
In addition to the options listed below, features such as grease fittings and keyway accommodations are commonly supported. Configurations beyond those shown can be reviewed based on operating conditions and performance criteria.
Materials
Materials
- C1045 Medium-Carbon Steel
- 304 Stainless Steel
- 316 Stainless Steel
- 6061 Aluminum
- 7075 Aluminum
- Nylon (MoS₂-Filled)
- Delrin (Acetal)
Bore Options
Bore Options
- Plain Bore
- Oil-Embedded Bronze Bushing
- Lubrite Bronze Bushing
- Bronze Bushing (Figure-8 Lubrication Groove)
- Ball Bearing
- Stainless Steel Ball Bearing
- Sealed Needle Roller Bearing
- Needle Roller Bearing (Without Inner Race)
- Tapered Needle Roller Bearing
Finishes
Finishes
- Flame Hardened
- Anodized
- Powder Coated
- Zinc Plated
- Hot-Dip Galvanized
- Machined Finish
Recent Projects
From one-off reverse-engineered sheaves to recurring OEM production runs, Tork Winch delivers reliable, built-to-spec solutions.

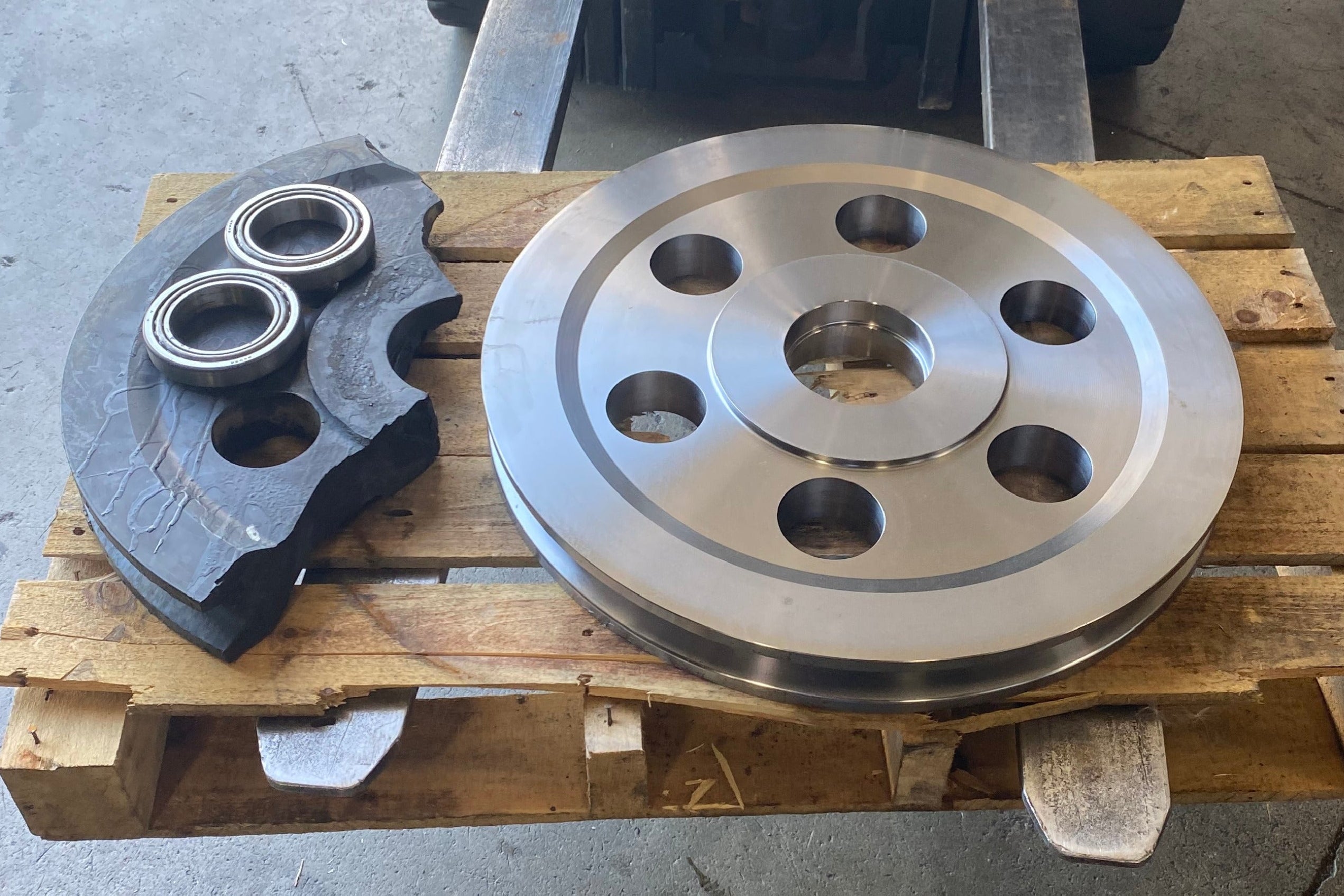

We reverse-engineered a sheave from a fractured component by capturing critical dimensions and groove geometry, then manufactured a replacement to the original specifications. This approach ensured dimensional compatibility, maintained operational performance, and minimized system downtime.

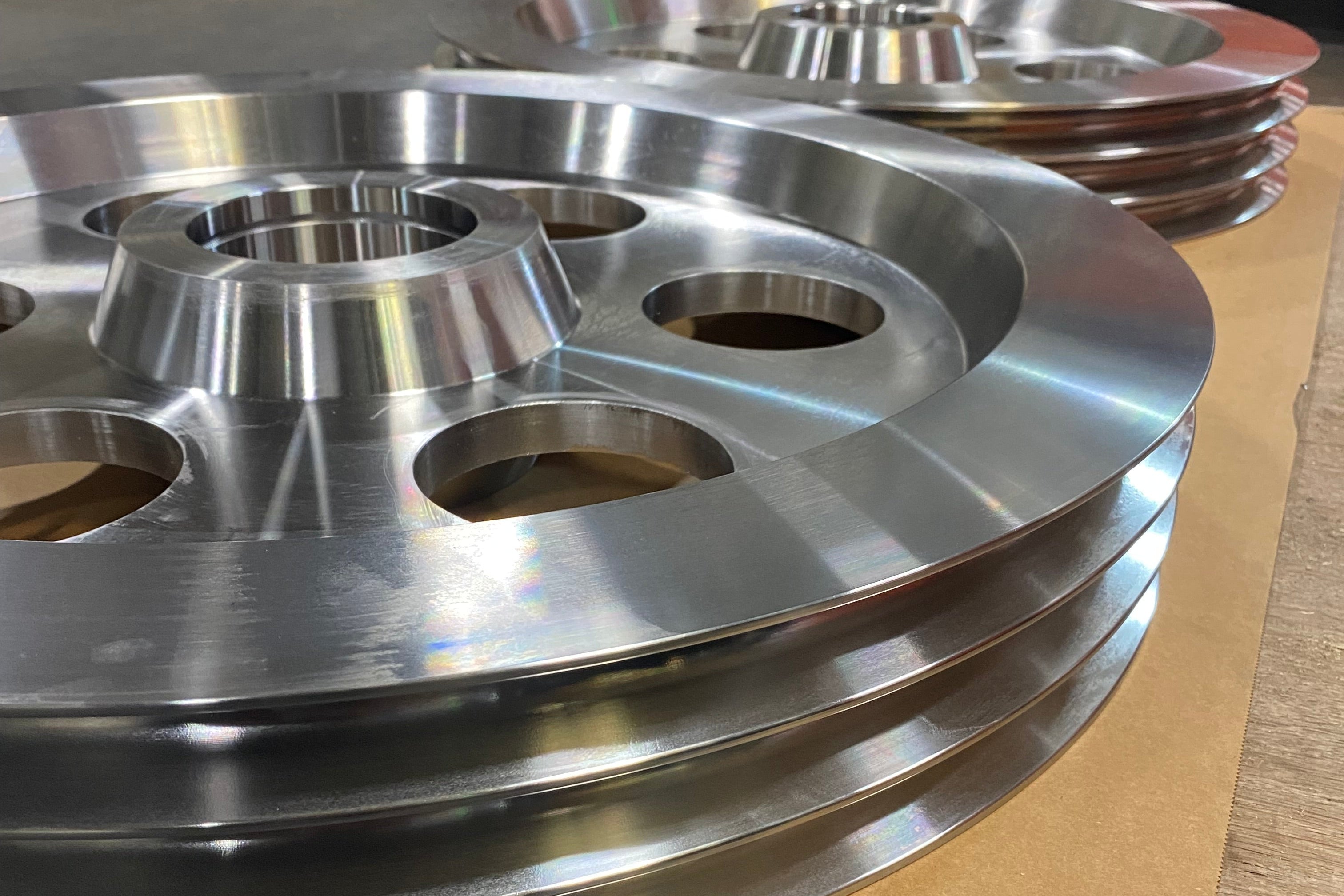

25″ diameter triple-groove sheave, utilizing a deep web design with face bore holes to reduce mass, minimizing rotational inertia.

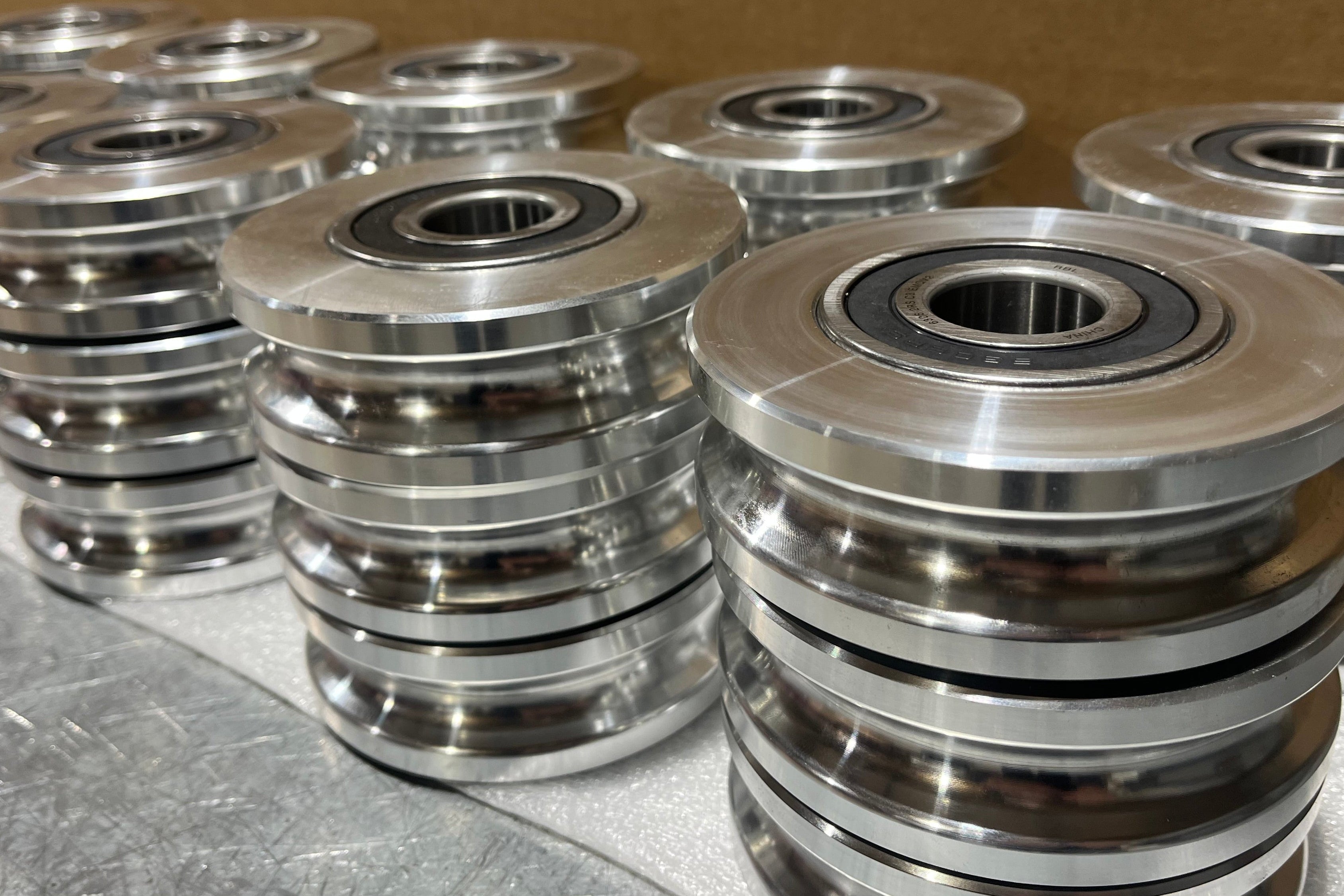

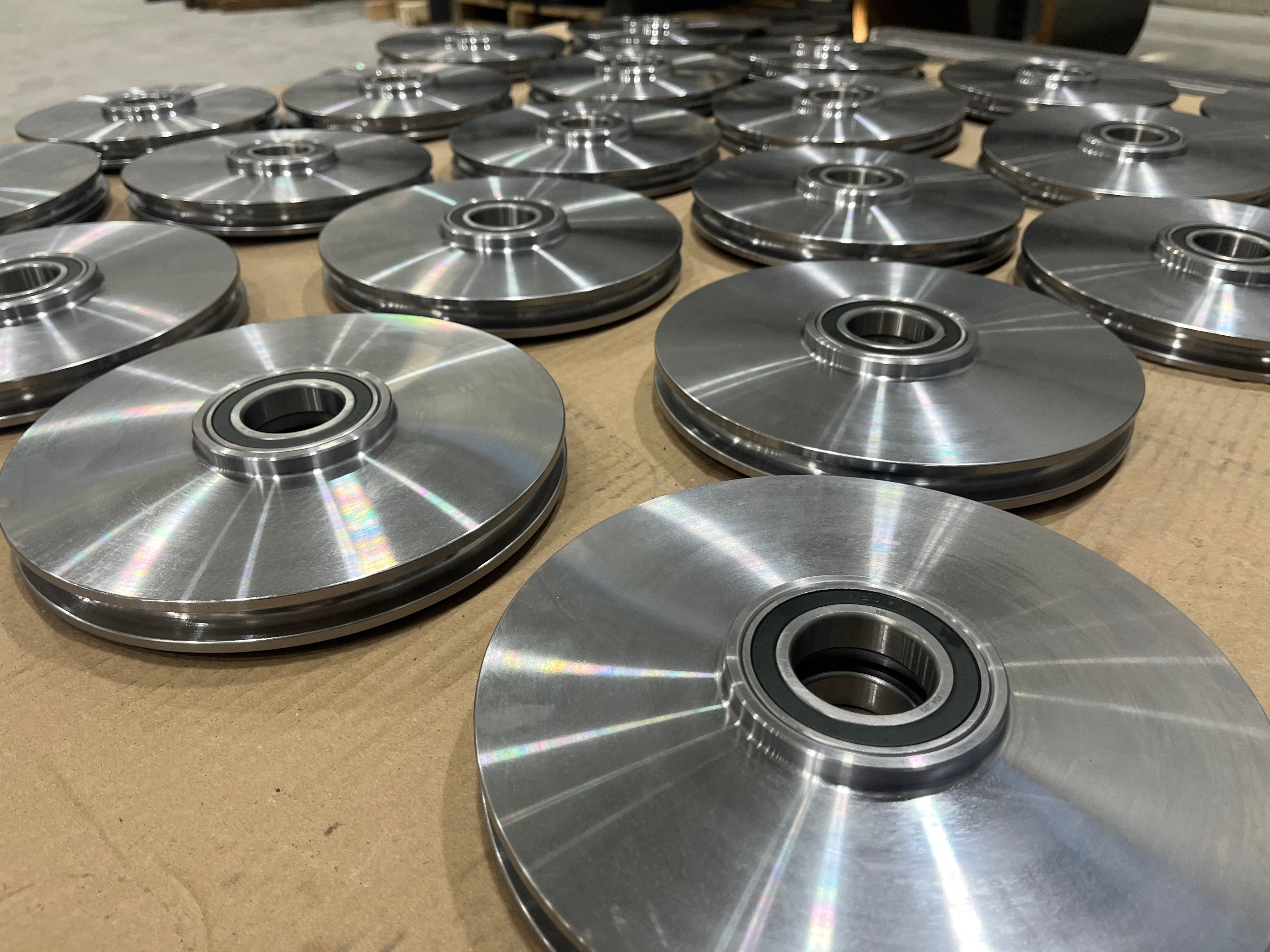

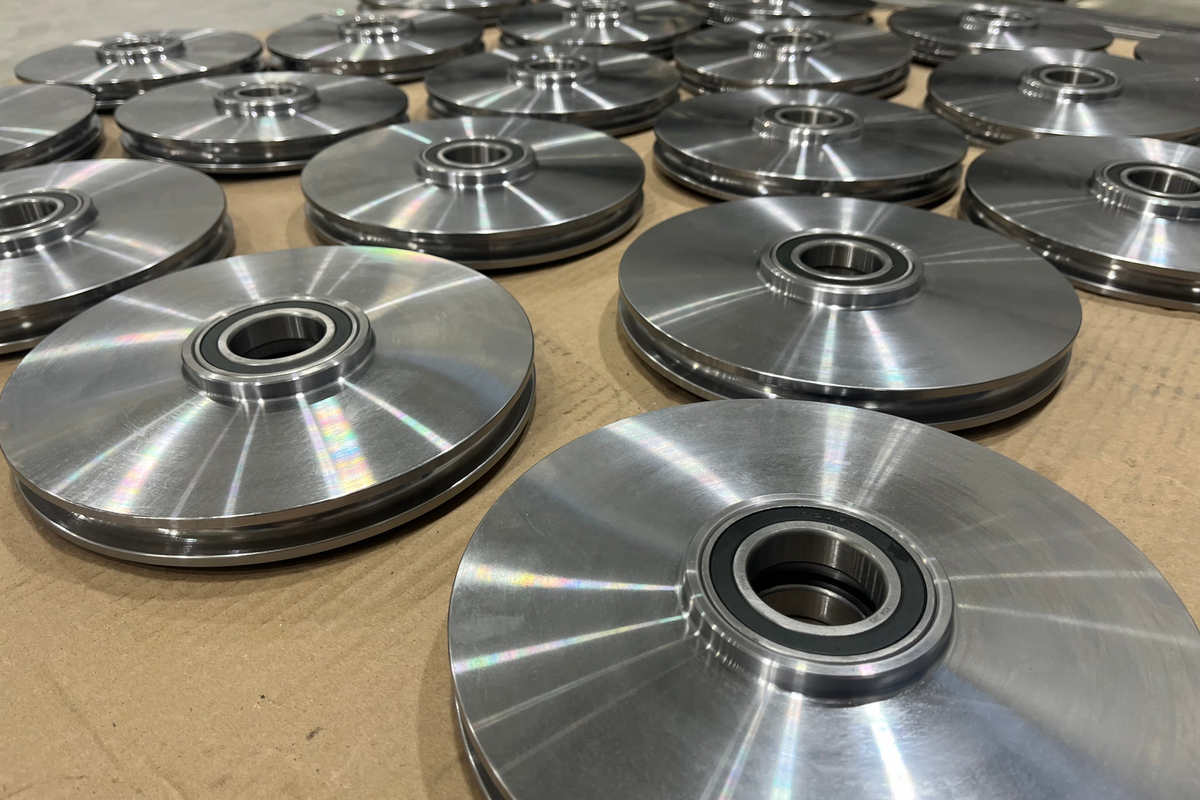

7075 aluminum sheaves with dual sealed ball bearings manufactured for a military cable-handling application. The bearing arrangement supports higher loads while maintaining low rotational resistance.

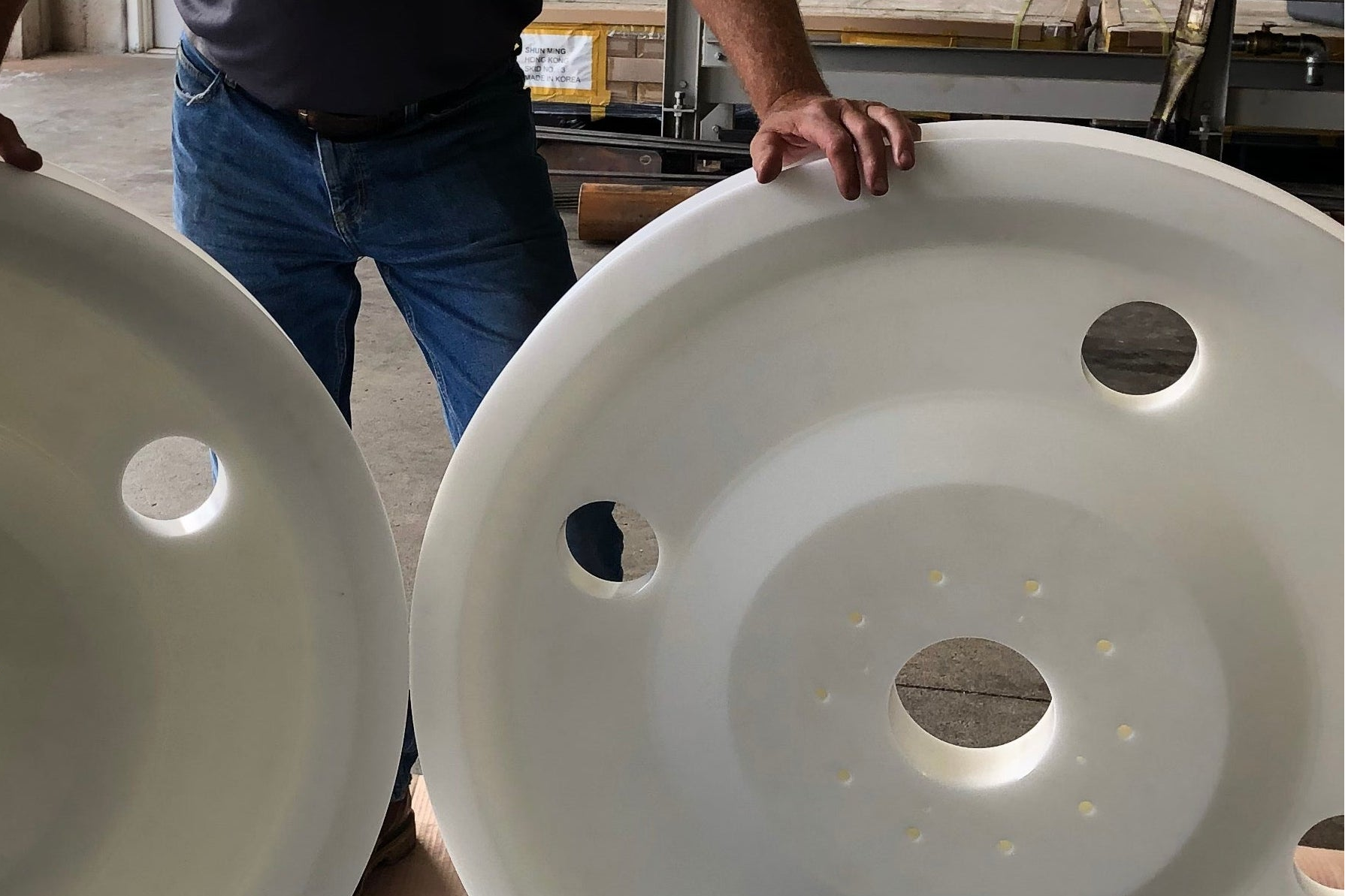

36″ diameter sheaves machined from Acetal (Delrin) for a coastal wire rope handling application. The moisture-resistant polymer reduces corrosion concerns while lowering rotational inertia and supporting extended wire rope life.

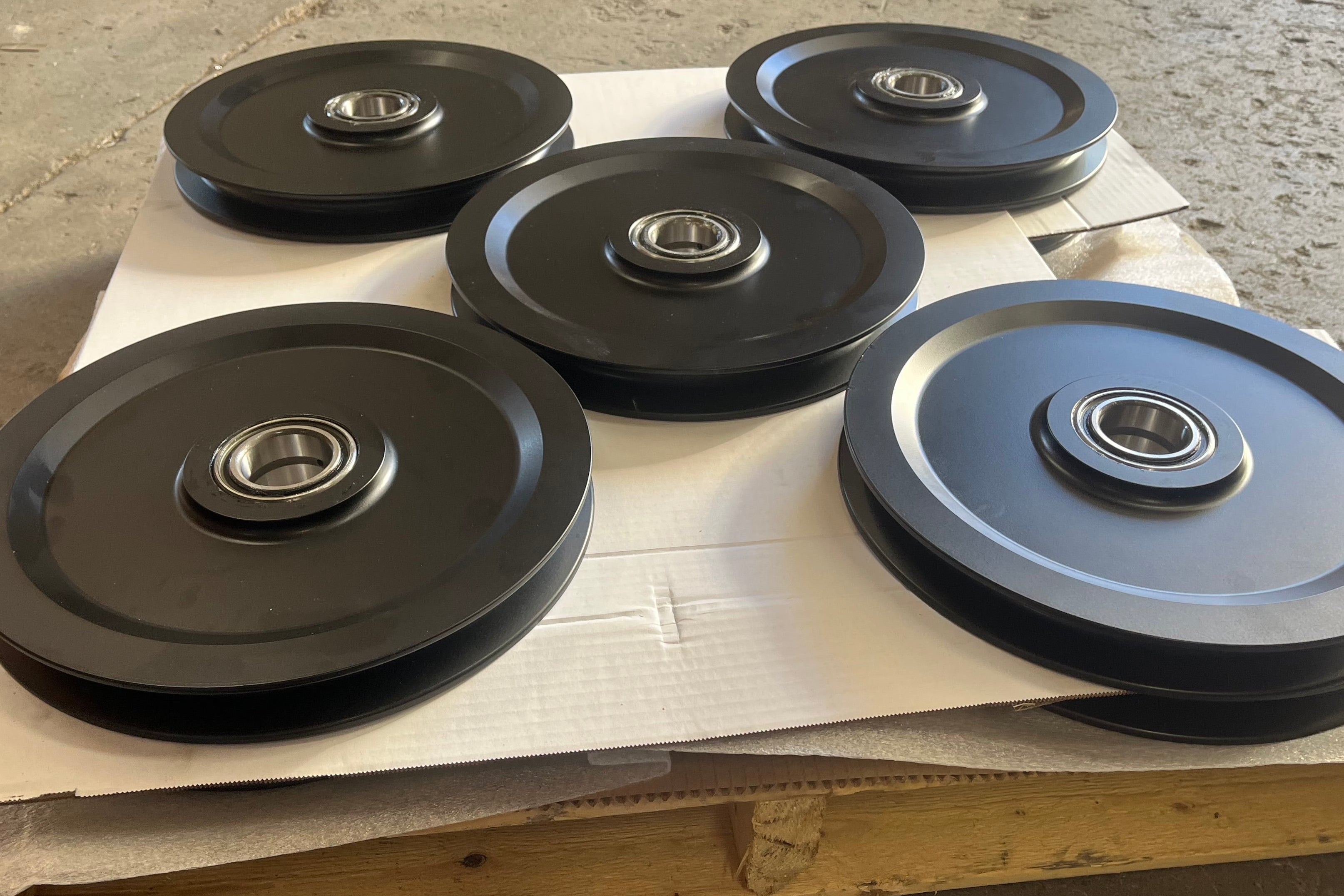

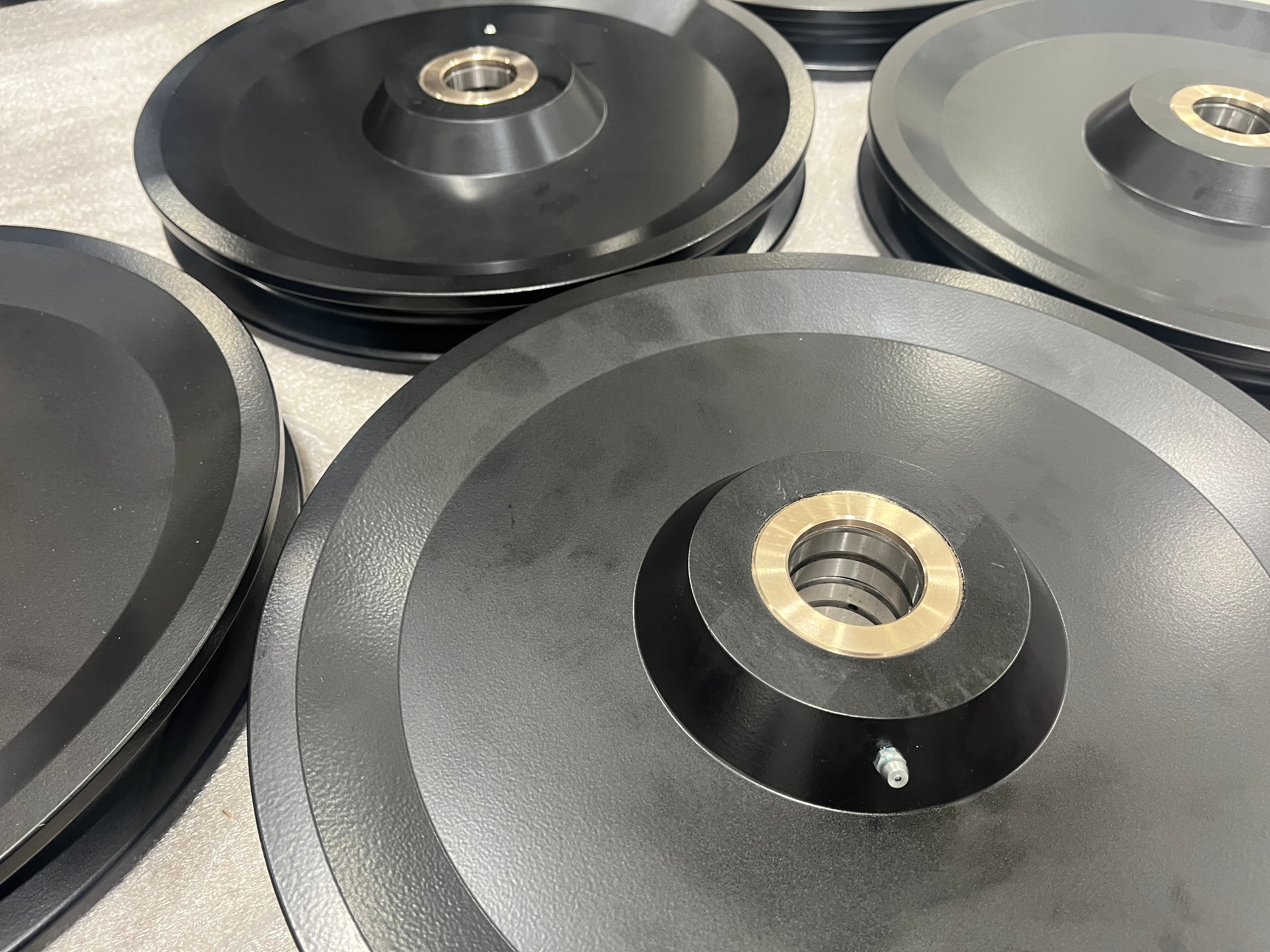

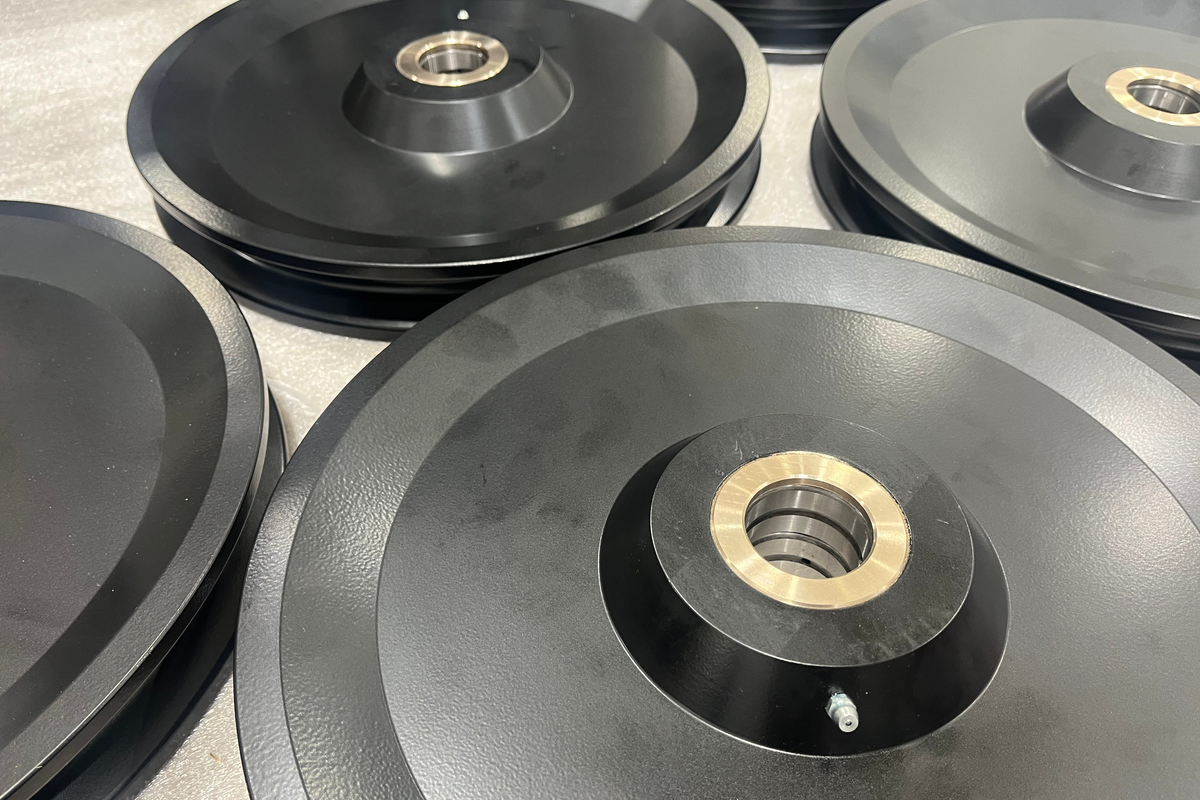

Sheaves manufactured for a theatre application utilizing a 30:1 D:d ratio to support extended wire rope service life during repeated cycling. Finished in black powder coat for low visibility within performance environment.

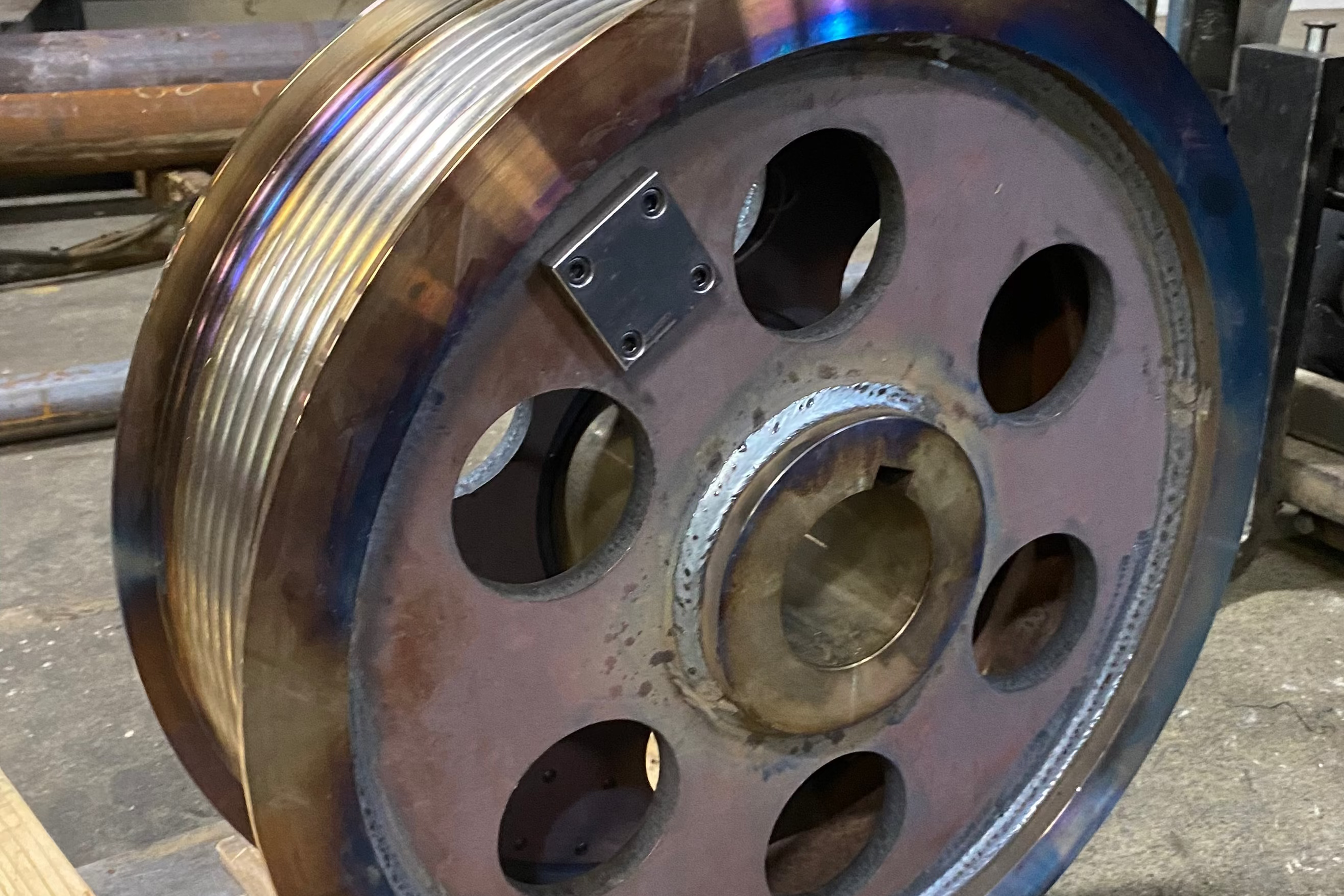

Large-diameter bull wheel manufactured for a wire rope drive system. The hub incorporates machined keyway accommodations to integrate with an existing drive shaft, while the rope contact surface was flame hardened to improve wear resistance.
