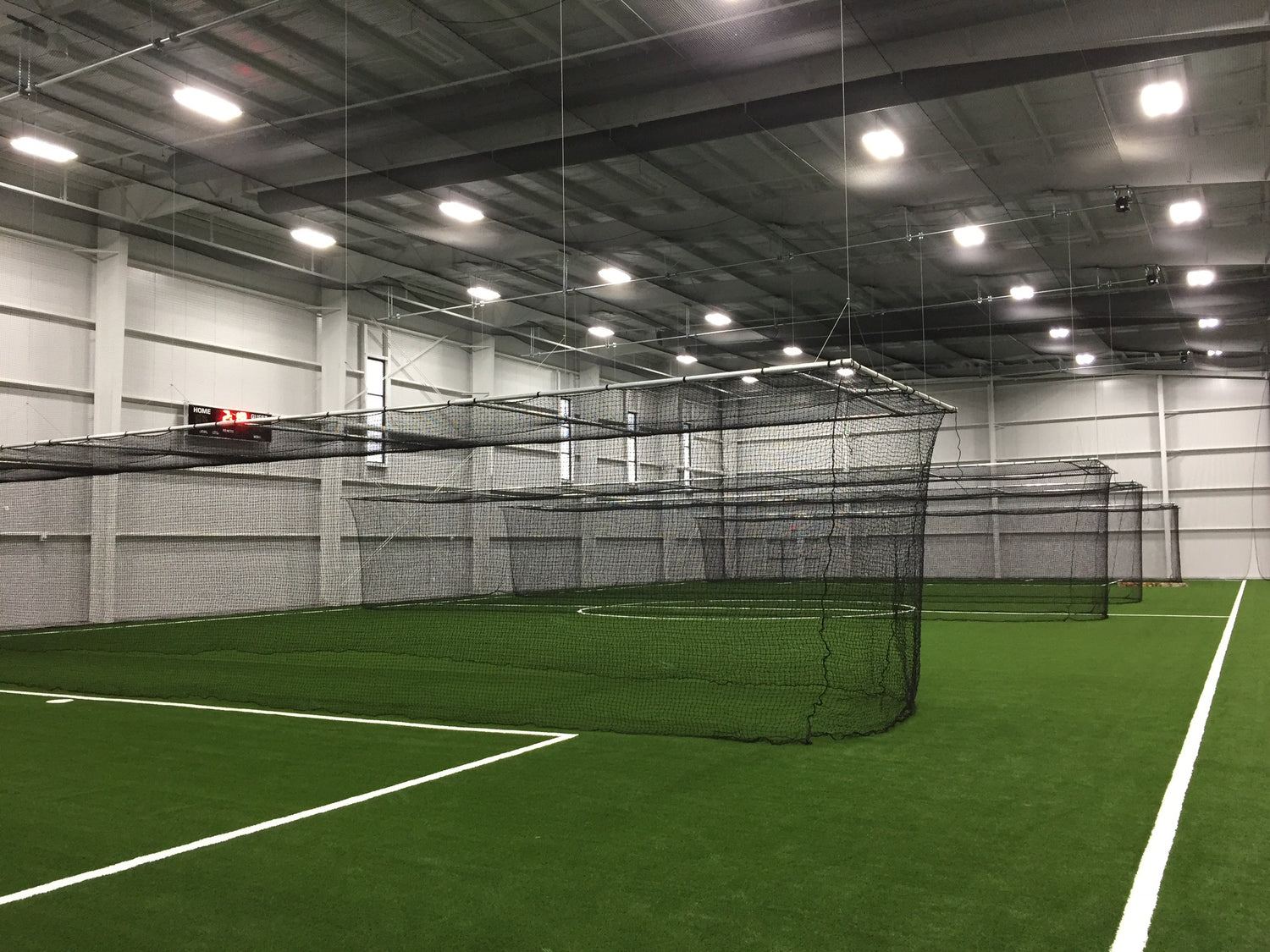

Line Shaft Winches for Batting Cages
One winch for synchronized lifting across multiple pick points.

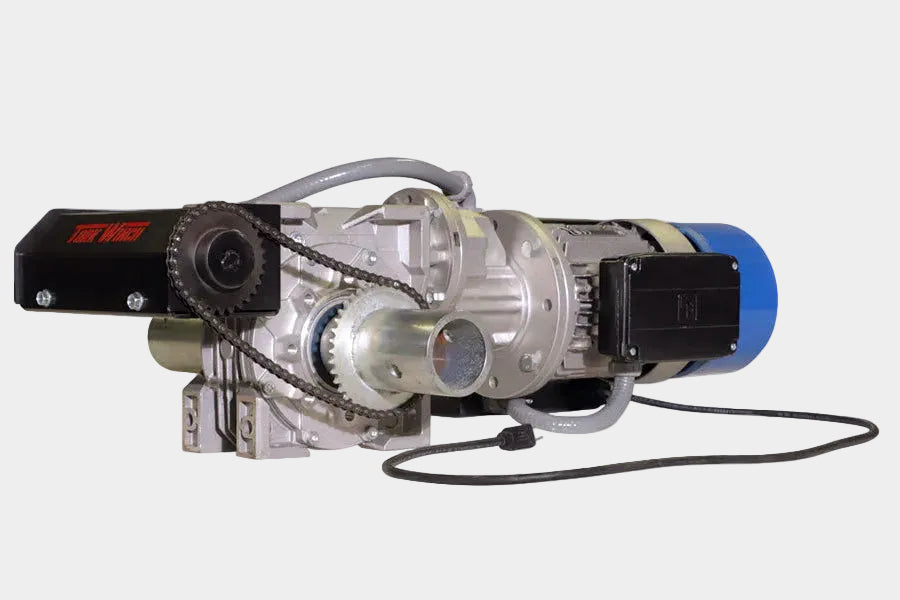

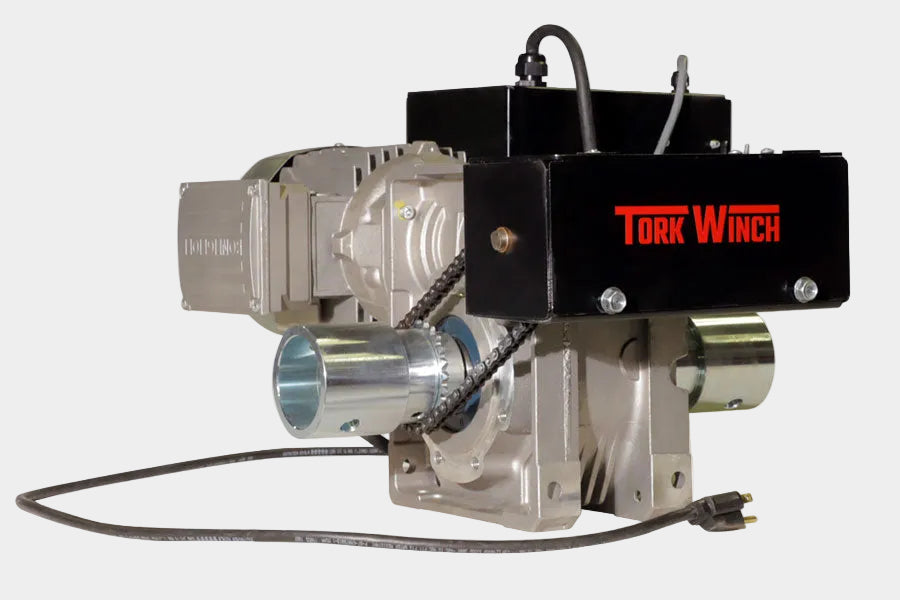

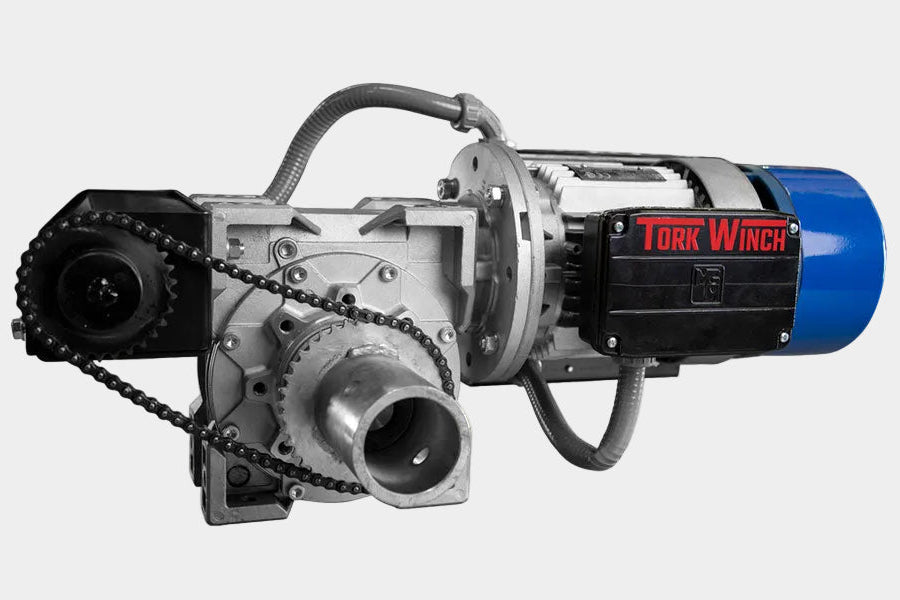

All drive winch models accept 2-3/8″ Schedule 80 pipe as the torque-transmitting shaft. This standardised shaft size enables straightforward integration into line shaft systems.
|
Max. Safe Working Load
|
1800 lbs of torque |
2100 lbs of torque |
2400 lbs of torque |
3600 lbs of torque |
|
Max. Lift / Travel
|
80 revolutions |
85 revolutions |
120 revolutions |
120 revolutions |
|
Output Speed
|
10 rpm (fixed speed) |
17.2 rpm (variable speed) |
21 rpm (variable speed) |
14 rpm (variable speed) |
|
Variable Frequency Drive
|
No |
Yes |
Yes |
Yes |
|
Duty Cycle
|
4 minutes on - 20 minutes off |
Continuous |
Continuous |
Continuous |
|
Safety / Braking
|
1. Over-speed arrest system 2. Self-locking worm gear |
1. Self-locking worm gear |
1. Self-locking worm gear 2. Brake motor |
1. Self-locking worm gear 2. Brake motor |
|
Adjustable Limit Switches
|
Upper and lower |
Upper and lower |
Upper and lower |
Upper and lower |
|
Supply Voltage
|
115/1/60 220/1/50 (upon request) |
120/1/60 240/1/60 |
120/1/60 240/1/60 240/3/60 |
120/1/60 240/1/60 240/3/60 |
