Standard Steel Sheaves

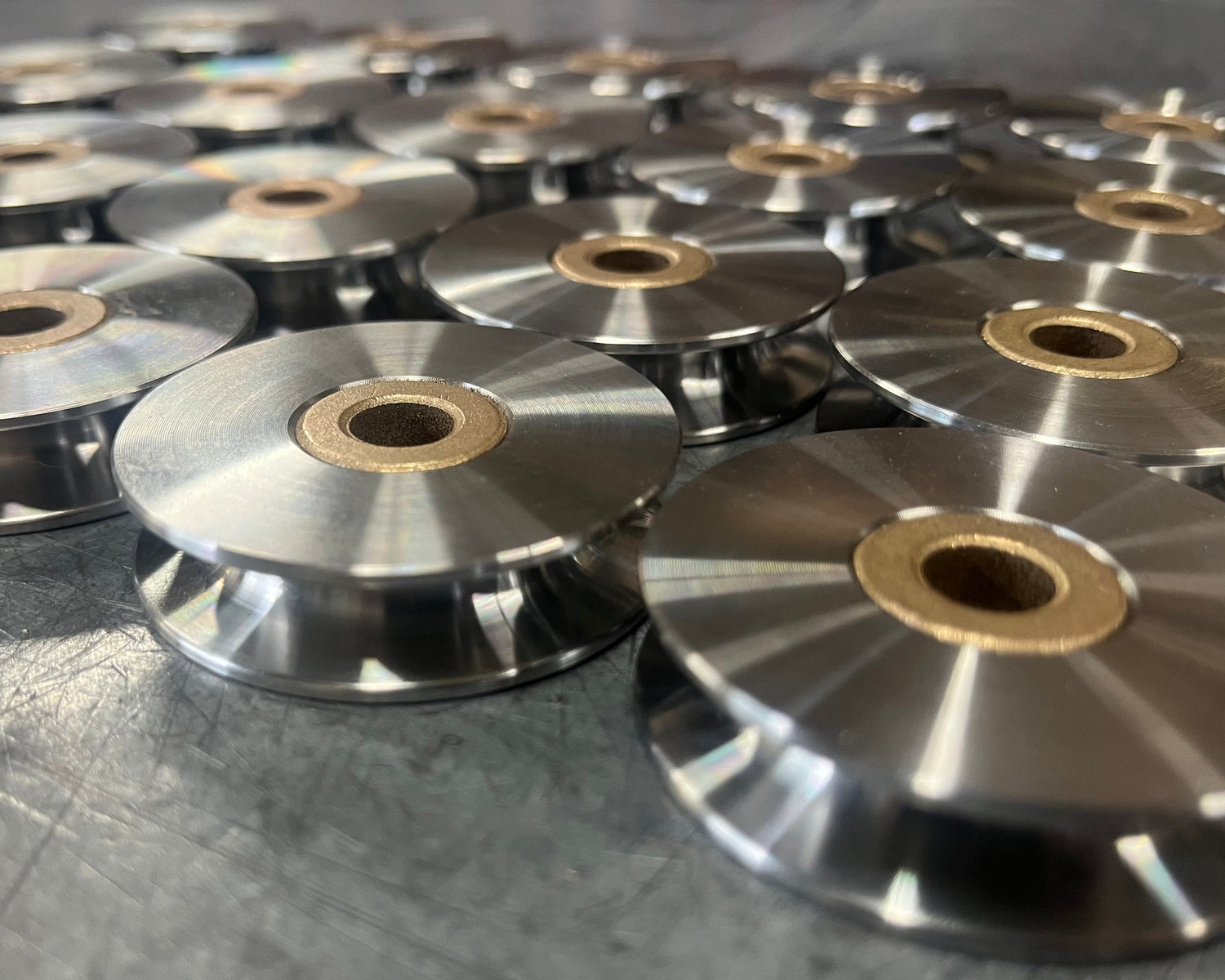

Precision-machined from C1045 steel for consistent performance and long service life. Standard configurations include oil-embedded bronze bushings for reliable, low-maintenance operation. Optional plain bore, bearing configurations, and finishing services including powder coating, zinc plating, and flame hardening are available depending on application requirements.
Choose from a range of standard sizes and D:d ratios below or submit drawings to sales@torkwinch.com
| Part Number | Outside Diameter (in)
 | Wire Rope Diameter (in)
 | Shaft Size (in)
 | Hub Width (in)
 | Rim Width (in)
 | Tread Diameter (in)
 | Hub Diameter (in) |
|---|---|---|---|---|---|---|---|
| Loading… | |||||||
Don’t See the Sheave You Need?
When standard configurations do not meet your application requirements, our in-house engineering, design, and machining capabilities enable economical custom solutions.
