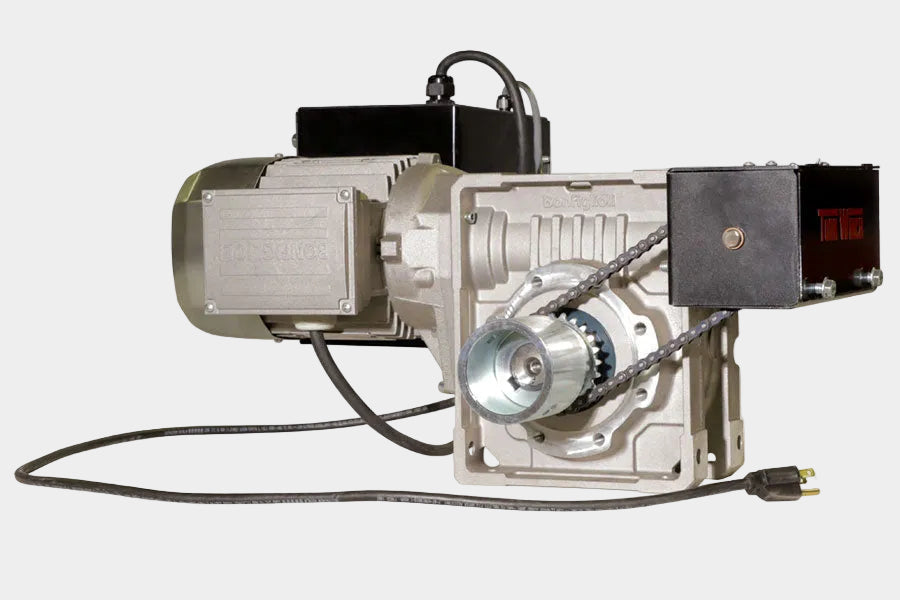

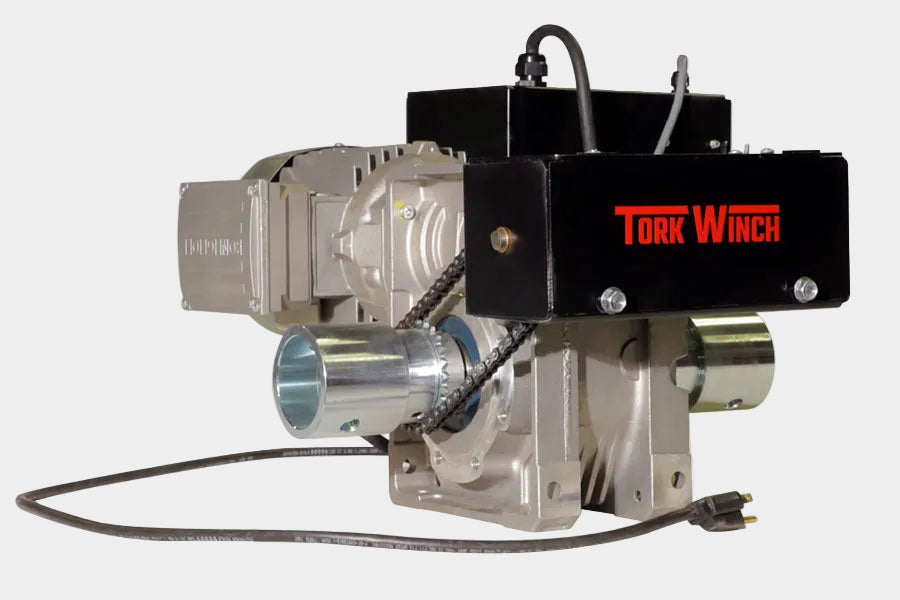

Line Shaft Winch

Possible the most versatile winch in the lineup, the TW 2100 is rated to deliver 2,100 lbs. of torque at 17.2 rpm. This winch is suitable for lifting stage curtains, batting cages, or other suspended loads. There are 85 turns of drive pipe available between the upper and lower
limit switch positions. Standard with a built-in VFD, it allows for smooth speed control, with soft ramp up and down to protect equipment and extend lifespan. Weighing only 75 lbs., it is compact and easy to install across a wide range of applications.
Supply Voltage
 120/1/60 | 240/1/60
Safe Working Load
 2100 in. lbs.
Load Type
 Lifting of curtains and batting cages.
Travel
 85 turns of drive pipe are available between the upper and lower limit switch positions.
Output Speed
 17.2 RPM
Supply Voltage (Detailed)
 120 V, 1 phase, 60 Hz. 30A fuse or circuit breaker.
Motor
 1 HP
Full Load Amperage
 T.B.D.
Duty Cycle
 Continuous
Gear Reduction
 Enclosed, oil-filled, single stage worm gear reducer with 100:1 reduction ratio.
Limit Switches
 Fully adjustable upper and lower limit switches.
Braking
 Self-locking worm gear reduction and DC injection braking.
Directional Control
 Three position key switch (K-SK13710). Wireless options available.
Control Voltage
 24 VDC
Weight (As Shipped)
 75 lbs
Controls
 VFD – Variable Frequency Drive
