Sheaves & Blocks
Tork Winch manufactures sheaves and directional blocks engineered for demanding lifting, rigging, and material handling applications.
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Sheaves

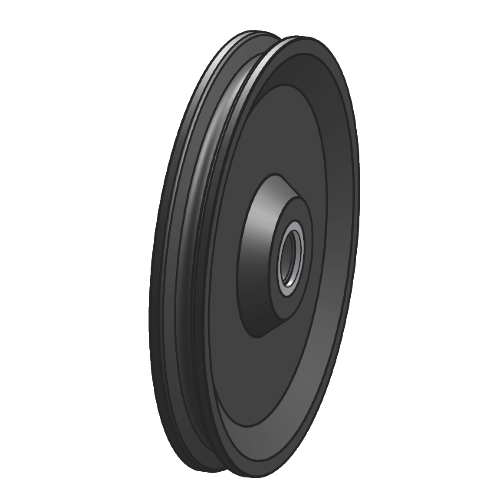

Standard bronze-bushed sheaves are precision-machined in a range of sizes and D:d ratios. Custom sheaves are produced in-house up to 48″ diameter, with material, bearing, finish and hardening options to match your exact load, speed, and service conditions.
Blocks (Pulleys)
Standard vertical and horizontal lead blocks are mounted units rated to full WLL at 180° rope wrap. Custom blocks are available in shackle, snatch, swivel, mounted and multi-sheave configurations - engineered to your rope path, mounting constraints, and operating environment.
View Equipment:
Recent Custom Projects
Triple sheave blocks engineered for hydroelectric dam gate application. Utilizing LUBRITE bushings for smooth, wear-resistant operation, an epoxy coating for corrosion protection, and stainless steel pins for enhanced durability and reduced maintenance.
Reverse engineering of a fractured sheave captured critical dimensions and groove geometry, enabling manufacture of a replacement matching the original specifications and minimizing system downtime.
Custom solution for flood management gate systems operating in Florida’s harsh marine environment. The blocks were rated for 10–20 ton loads and supplied in single and double shackle configurations, with single and double sheave configurations for 5/8″ and 3/4″ rope. All components were galvanized to provide long-term corrosion resistance in saltwater conditions.
25″ diameter triple-groove sheave, utilizing a deep web design with face bore holes to reduce mass, minimizing rotational inertia.

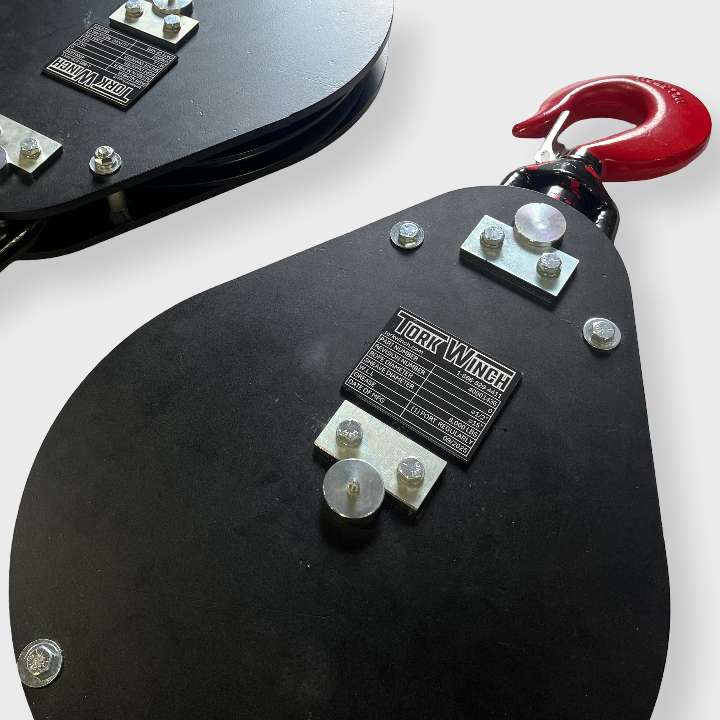

These blocks were engineered with a 30:1 D:d ratio to reduce bending stress and strand fatigue during repeated cycling. Increased pitch diameter improves load distribution across the rope, supporting long-term wire rope integrity in critical overhead applications. Supplied in a shackle-mounted configuration and finished in black powder coat for durability and low-visibility installation.
7075 aluminum sheaves with dual sealed ball bearings manufactured for a military cable-handling application. The bearing arrangement supports higher loads while maintaining low rotational resistance.
Single sheave shackle blocks fabricated with 316 stainless steel side plates and sheave for operation in marine and saltwater environments. A swing open cheek design allows the block to be installed directly onto an existing wire rope, eliminating the need to reeve the full line during installation or maintenance.
36″ diameter sheaves machined from Acetal (Delrin) for a coastal wire rope handling application. The moisture-resistant polymer reduces corrosion concerns while lowering rotational inertia and supporting extended wire rope life.
Stainless steel swivel blocks equipped with a greaseable swivel mechanism to allow alignment with the direction of load during operation. The assembly was provided with multiple grease ports to allow connection of remote lubrication lines, enabling routine bearing maintenance without disassembly or direct access.
Sheaves manufactured for a theatre application utilizing a 30:1 D:d ratio to support extended wire rope service life during repeated cycling. Finished in black powder coat for low visibility within performance environment.
Large-diameter bull wheel manufactured for a wire rope drive system. The hub incorporates machined keyway accommodations to integrate with an existing drive shaft, while the rope contact surface was flame hardened to improve wear resistance.
