GHP800

GHP800

Safety Cable Spool

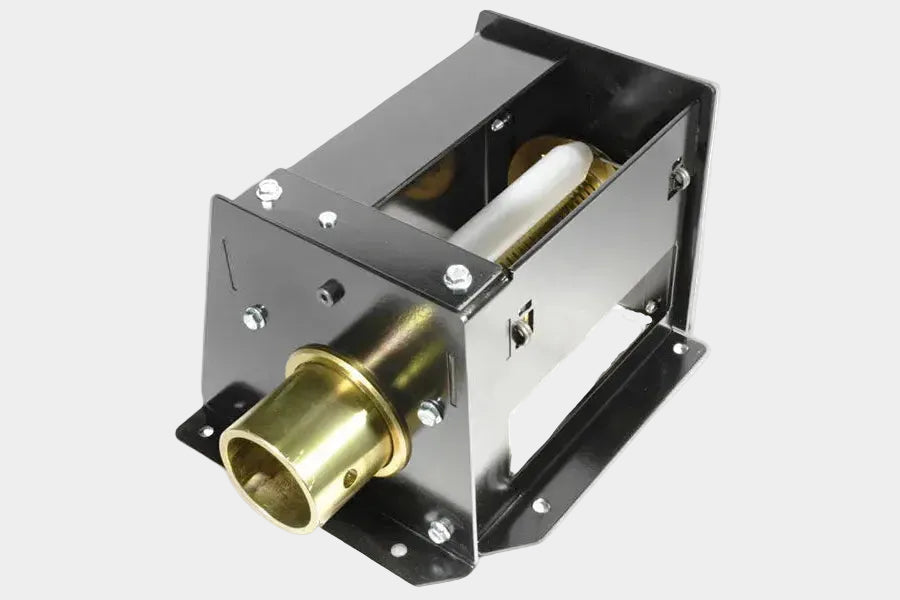

The Tork Winch GHP 800 is designed to work in conjunction with the SW 1600 stage winch.  The stage winch is the engine that drives the system.  A connecting pipe can extend 1’ – 10’ from one or both sides of the stage winch and connect to the GHP800.

The GHP comes with 50’ of rope that can be attached to whatever stage or other pieces of equipment that you wish to lift.  The ratcheting mechanism inside the GHP assures a safe lift that is secure and will not fall back.
Safe Working Load
 800 lbs.
Rope Travel (1st Layer)
 34’
Load Type
 Vertical Lifting
Rope Drum
 Steel drum with grooves for accurate winding. Supported by large diameter ball bearings. Positive through-drum rope anchor.
Pitch Diameter
 3.56”
Pressure Roller
 UHMW cylindrical roller for extended rope life. Pressure applied with torsion springs.
Wire Rope
 3/16 7×19 G.A.C.
Braking Mechanism
 Overspeed safety brake to arrest runaway load.
Input/Output Shafts
 Provided with steel couplings. Slotted cross holes for use with ½” bolts to transmit torque. Intended for use with 2” Sched. 80 line shafting.
Frame Construction
 Precision laser cut interlocking steel frame.
Weight (As Shipped)
 62 lbs
Coating
 Frame painted with black e-coating. All other steel components zinc plated for corrosion protection.
Usage Environment
 For indoor use only
