Max. Safe Working Load |
Designed to lift a vertical weight of 1000 lbs / 450 kg |
Load Type |
Vertical lifting |
Rope Type |
1/4” / 6.35 mm 7 x 19 aircraft cable (rope not supplied with winch) |
Rope Travel |
25 ft / 7.62 meters on one layer. A second layer, for 45 ft / 13.7 meters total, may be wound if required |
Rope Speed |
1 turn of crank equals 0.44” of rope travel (650 turns to wind in 25 ft) |
Gear Reduction |
Proprietary composite self-lubricating gearing with no oil bath |

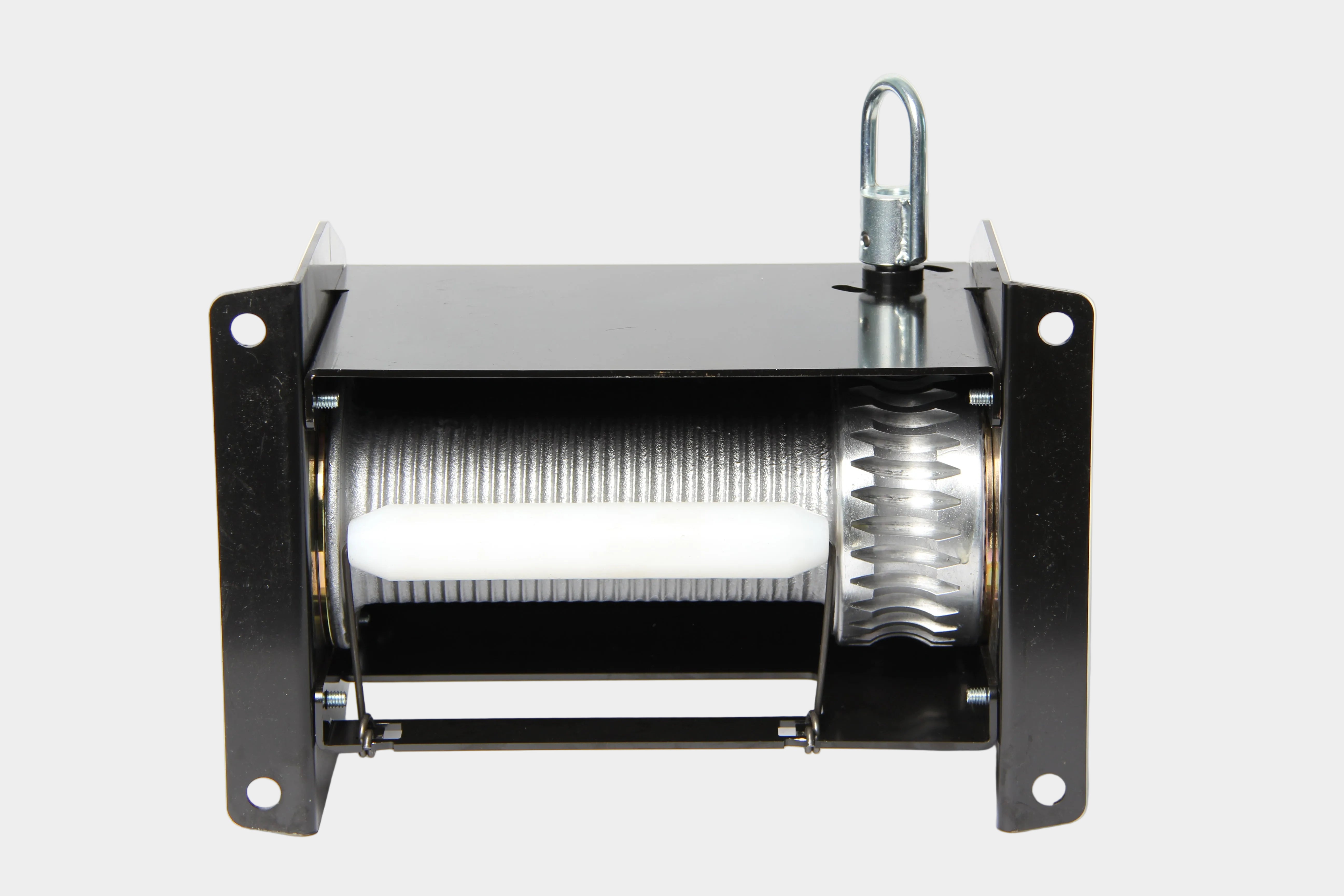

Rope Drum |
Grooved for accurate winding. Supported by large diameter ball bearings, and with positive, through the drum type rope anchor |
Braking |
Double worm gearing plus passive uni-directional brake |
Pressure Roller |
Constant pressure type with torsion spring mounting |
Frame Construction |
Precision interlocking steel frame for high rigidity and precise alignment. Semi-enclosed for safety. Powder coated for corrosion resistance |
Crank Handle Position |
Crank input on bottom face of unit. Crank plugs in vertically |
Weight (As Shipped) |
38 lbs / 17 kg |
