Wrestling Mat Winch

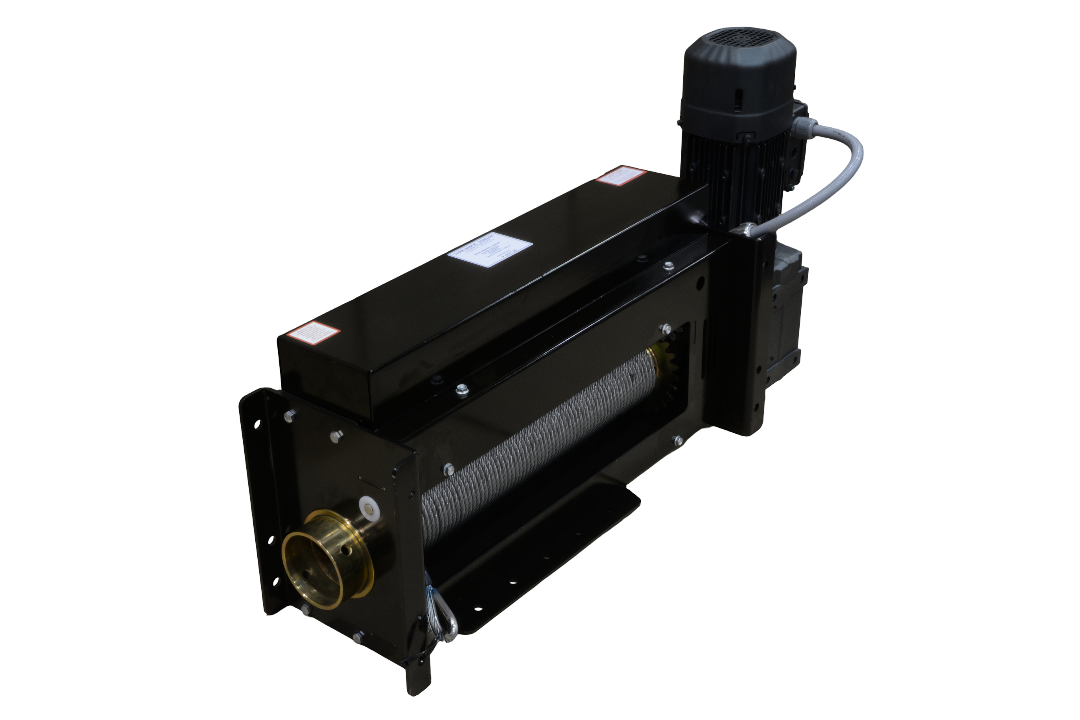

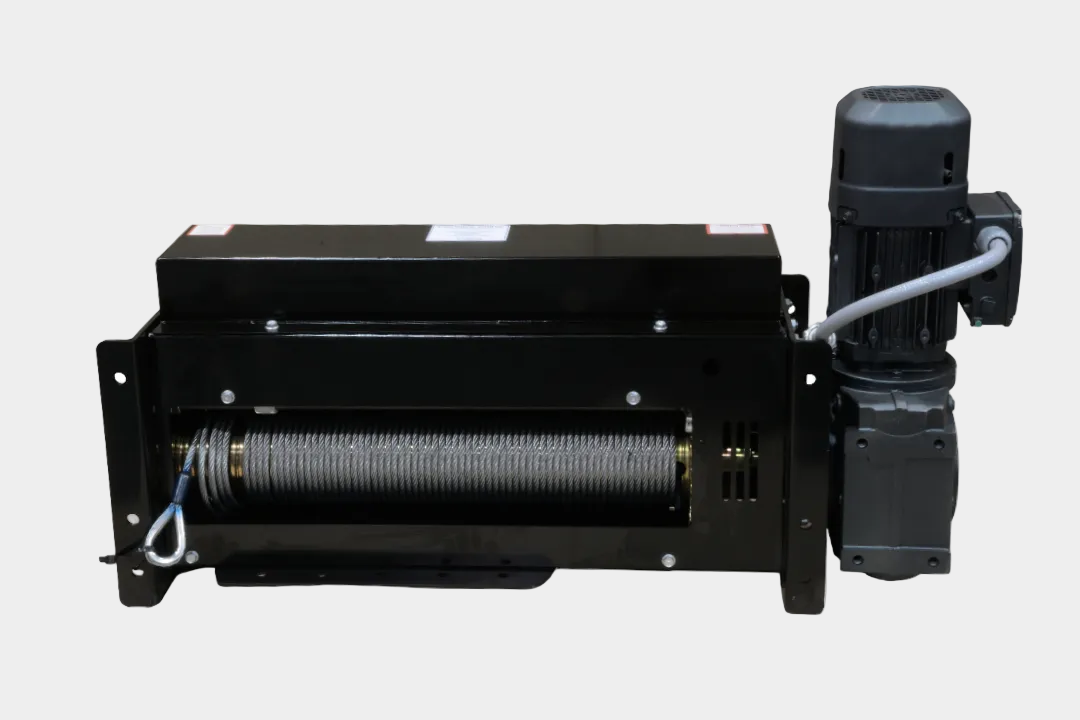

The Tork Winch Mat Winch MW 4600 is designed to lift a vertical weight of 1900 lbs./862 kg. This industrial grade winch is the complete package with an enclosed gearbox, VFD and low voltage control.  A brake motor with a self-locking worm gear set ensures safe operation. For an increased level of safety, Tork Winch highly recommends pairing each MW 4600 with a Posilok rocker kit. The MW 4600 is sure to last a lifetime in your gymnasium with a continuous rated duty cycle.
Safe Working Load
 Designed to lift a vertical weight of 1900 lbs / 862 kg
Load Type
 Vertical Lifting
Rope Type
 5/16” 7 x 19 aircraft included with winch
Rope Travel
 85 ft / 25.9 meters on one layer
Rope Speed
 11 ft per minute / 3.35 meters per minute
Input Voltage
 240/3/60 standard (120/1/60 or 480/3/60 available)
Control Voltage
 24 VDC
Duty Cycle
 Continuous
Gear Reduction
 Enclosed, oil-filled, single stage worm gear reducer
Rope Drum
 Grooved for accurate winding. Supported by large diameter ball bearings, and with positive locking rope anchor
Braking
 Worm gearing plus brake motor for double safety brake mechanism
Limit Switches
 Fully adjustable upper and lower limit switches
