Max. Safe Working Load |

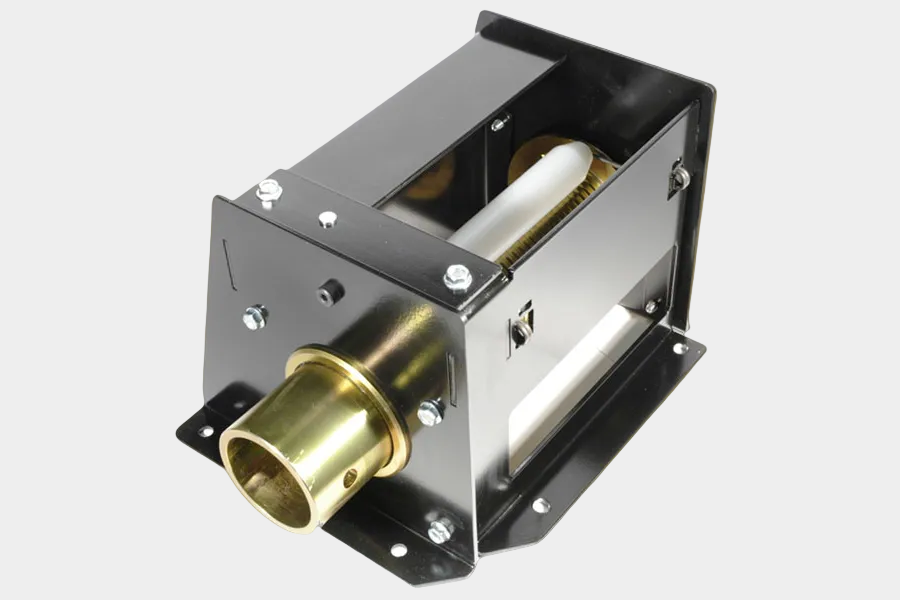

Each PS 500 PosiSpool may carry a maximum of 500 lbs |
Load Type |
Vertical lifting |
Rope Travel |
34 ft on one layer, 70 ft on second layer |
Rope Drum |
Grooved for accurate winding. Supported by large diameter ball bearings and with positive, through the drum type rope anchor |
Pitch Diameter of Drum |
3.56” (1st layer) • 3.87” (2nd layer) |
Pressure Roller |
Constant pressure type with torsion spring mounting |
Wire Rope |
50 ft of 3/16” 7 x 19 galvanized aircraft cable included with each unit |
Braking Mechanism |
Over-speed brake engages immediately to arrest a runaway load |
Output Shafts |
Steel hollow couplings with 2.40” bore |
Frame Construction |
Precision interlocking steel frame for high rigidity and precise alignment. Semi-enclosed for safety and powder coated for corrosion resistance |
Weight (As Shipped) |
38 lbs |
